Features:
Stable and reliable time
and temperature control
Different buck size available suit your pressed products
Economical with small energy consumption
Versatile, small volume, trendy design and easy to move
Suitable for Children's wear, coat fron, sleeves, hats, brand &
color test etc.

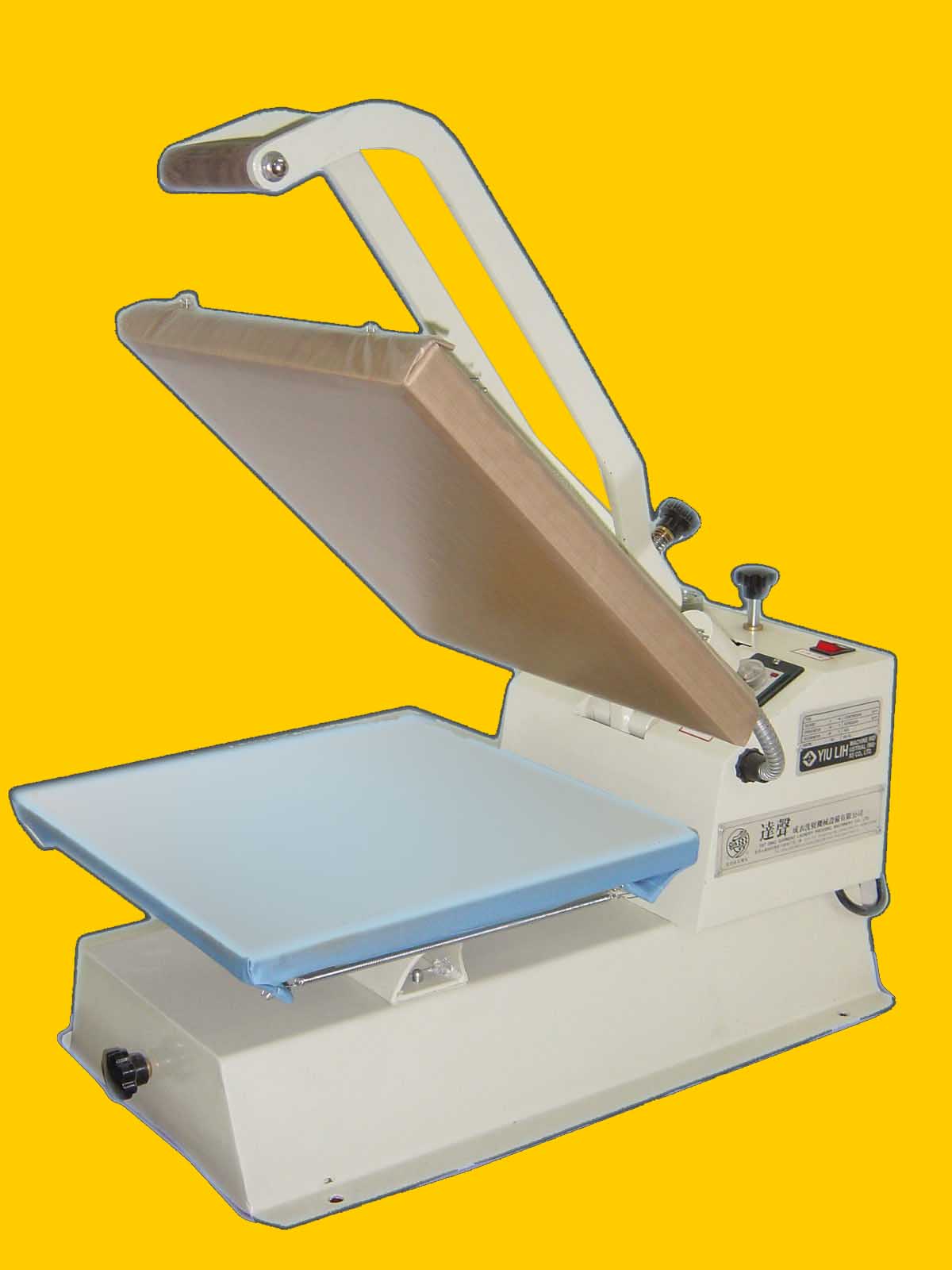

Operations
1)Turn on "Power", the red light is on.
2)Set the designed temperature with the temperature controller first.
Once the heater meet the "set" temperature, the power pilot
lamp will extinguish automatically
3)Set the press time on timer. Once the topper and under buck reached
the set time, the buzzer will ring automatically for warning
4 )Put the "Transfer paper" and pressed products on the
suitable place of the under buck. Then pull down the handle to start
pressing
5 )When the timer reached the set time, the buzzer will ring automatically.
Lift the handle and take the finished work.
Work
size |
Voltage |
Heater |
Length |
Width |
Height |
N.W. |
380x380mm |
110V |
1.8kw |
820mm |
410mm |
500mm |
55kg |
400x800mm |
220V |
4kw |
820mm |
850mm |
500mm |
75kg |
|
